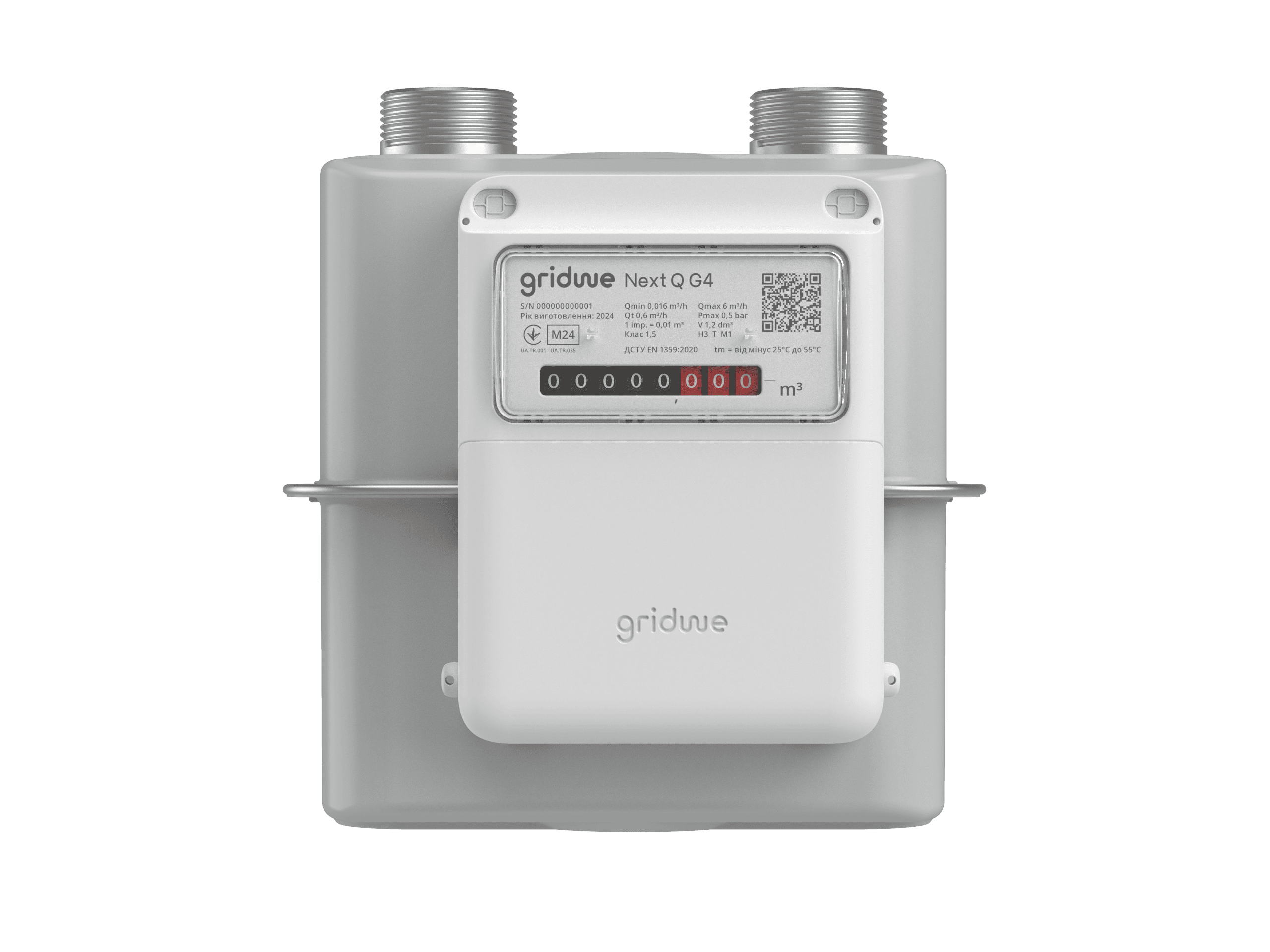

Next Q
for sizes G1,6; G2,5; G4; G6
4560
clean lines, functionality
and harmony
determination of location when establishing and transmitting information
IP protection grade 65 for all
electronic components
integration with
remote systems
we guarantee a class of accuracy 1.5
in the stated range of flow rates
remote firmware update
and settings
registration of unauthorized actions and notification of the operator
8 years of full operation
from 1 battery
the measured volume is displayed adjusted to standard conditions
Nominal consumption, Qnom, m³/h
Maximum flow rate, Qmax, m³/h
Minimum consumption, Qmin, m³/h
standard execution
custom execution
1,6
2,5
0,25
2,5
4
0,4
4
6
0,6
6
10
1
Nominal cyclic volume, dm³
Nominal connection diameter, mm/thread of connecting
fittings (ISO 228-1) (depending on the order)
Mass, kg, max
The center-to-center distance between connecting fittings, mm
Dimensions HxWxD, mm, max
1,2
2,2
110/130
205x168x220
2
4,1
250
Class accuracy
Class of external mechanical conditions
The limits of allowable relative error in the range intervals
of volumetric flow rate at a temperature of (20±2) °C:
Upon release from production and after repair:
in the flow range from Qt ≤ Q ≤ Qmax
in the flow range from Qmin ≤ Q < Qt
During operation:
in the flow range from Qt ≤ Q ≤ Qmax
in the flow range from Qmin ≤ Q < Qt
Sensitivity threshold, max, m³/h
Maximum excess working pressure
Capacity of the measuring device, m³
Operating temperature range, °C
Relative humidity of air at a temperature not exceeding 25 °C without
condensation of moisture. %
Standard gas temperature, tb, °C *
The specified average temp., tsp, °C *
Carrier frequency, MHz
Maximum radiated power of LTE-MTC/eMTC and
NB-IoT, max, dBm.
Voltage supply, V
The price of the smallest division of the measuring device,
dm³
Service life
1,5
M1
99999,999
from minus 25 to 55
up to 95
20
20
Band 3 (1800 MHz)
Band 8 (900 MHz)
23,0
up to 3,6
0,2
20 years
